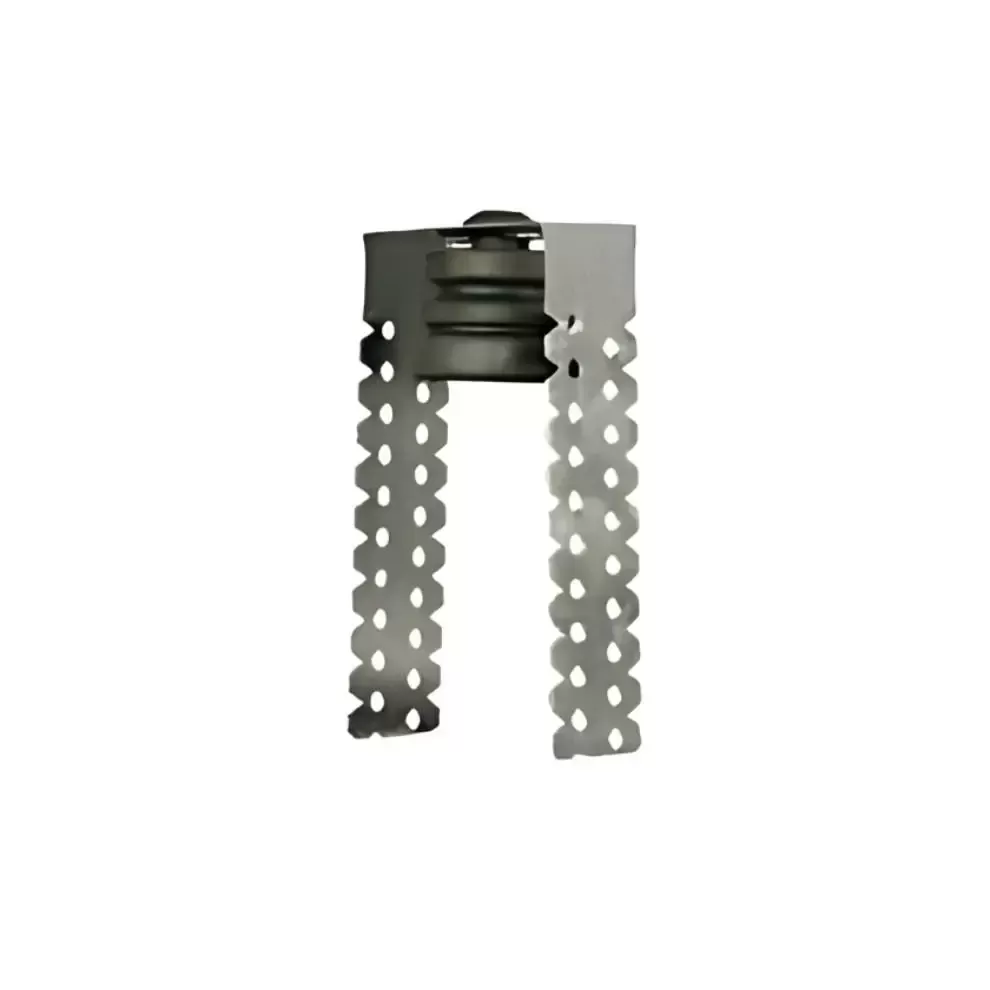

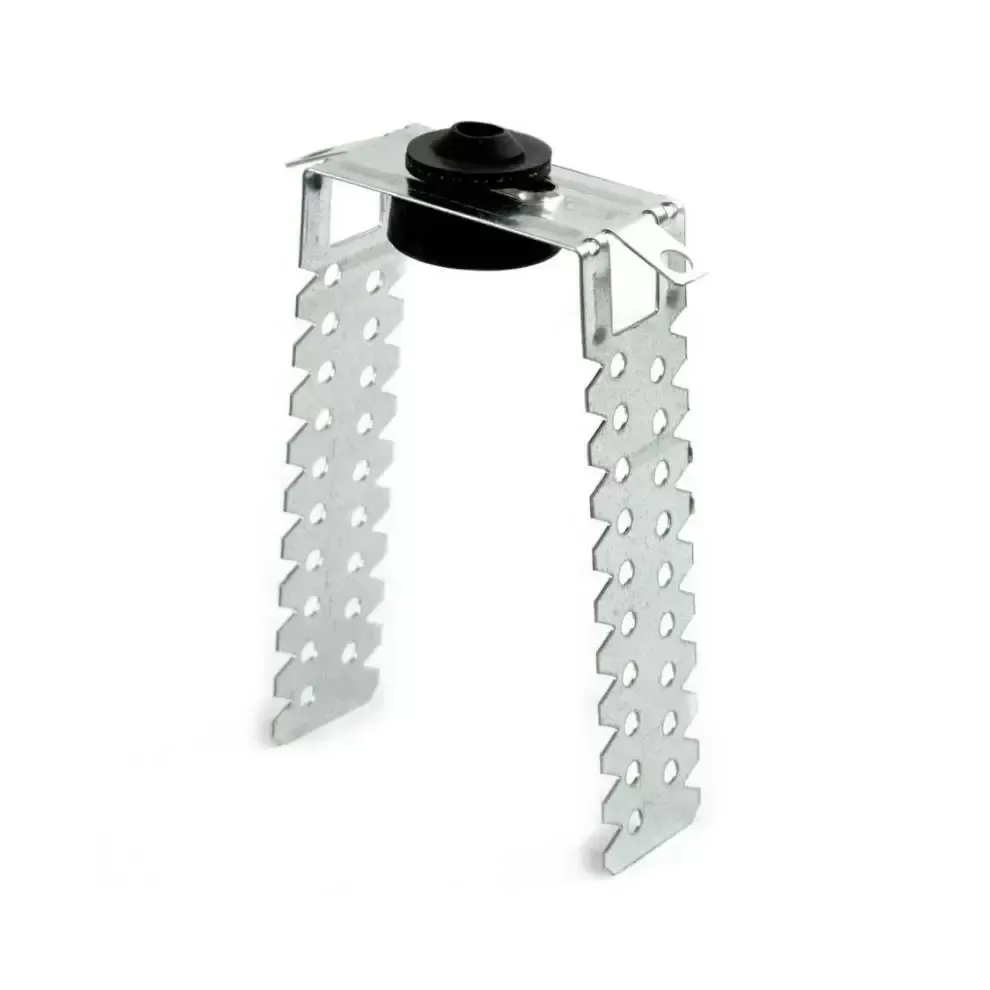

Pi mini Sound Insulation Suspension is used to suspend sound-insulating (gypsum board) ceilings, suspend air-ducts e.t.c. The design of the metal profile with its edges can be easily cut or bent in different lengths to achieve uneven levels of the floating ceiling when required.

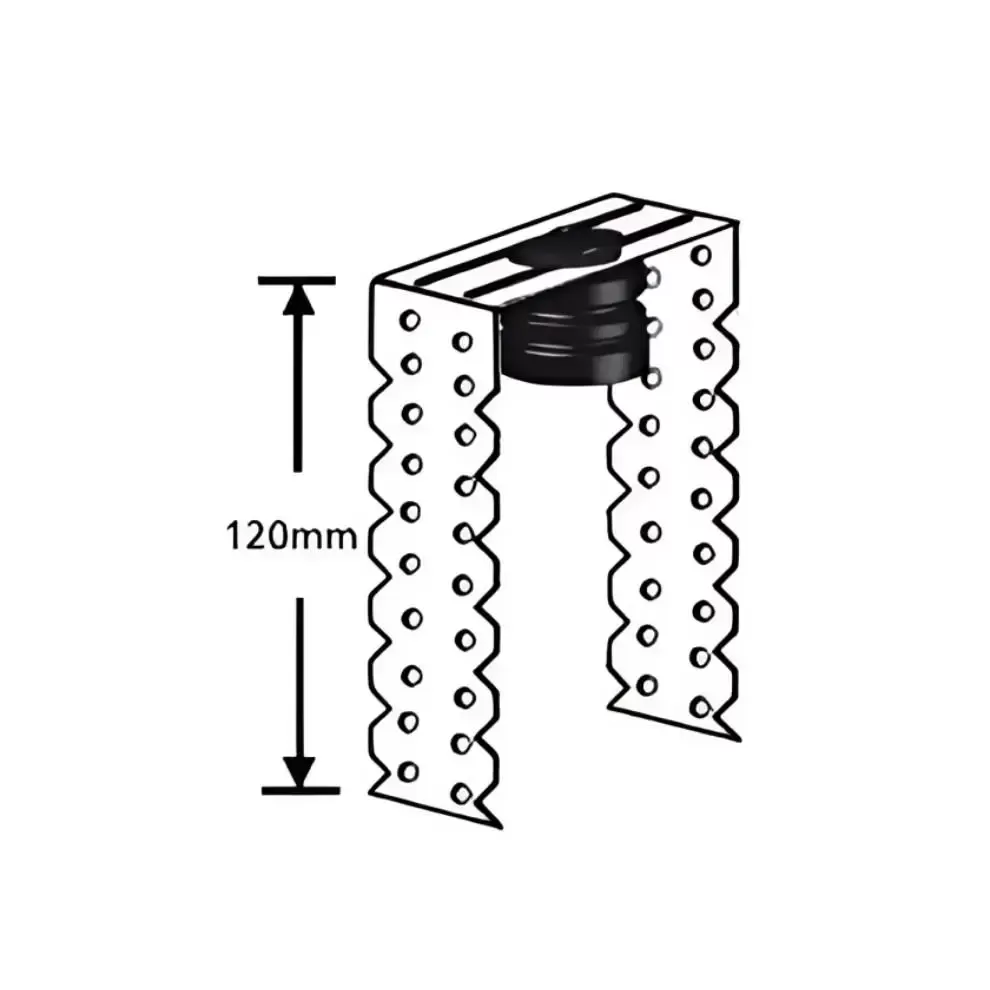

Pi mini consists of a metal frame of galvanized sheet properly formed. A special anti-vibration rubber support is placed on the upper part. The special design of the metal profile is perforated thus it can be cut easily at different length in order to cover the project needs.



  • Suspension of sound insulation gypsum board ceilings.
  • Anti-vibration suspension of air – ducts e.t.c.

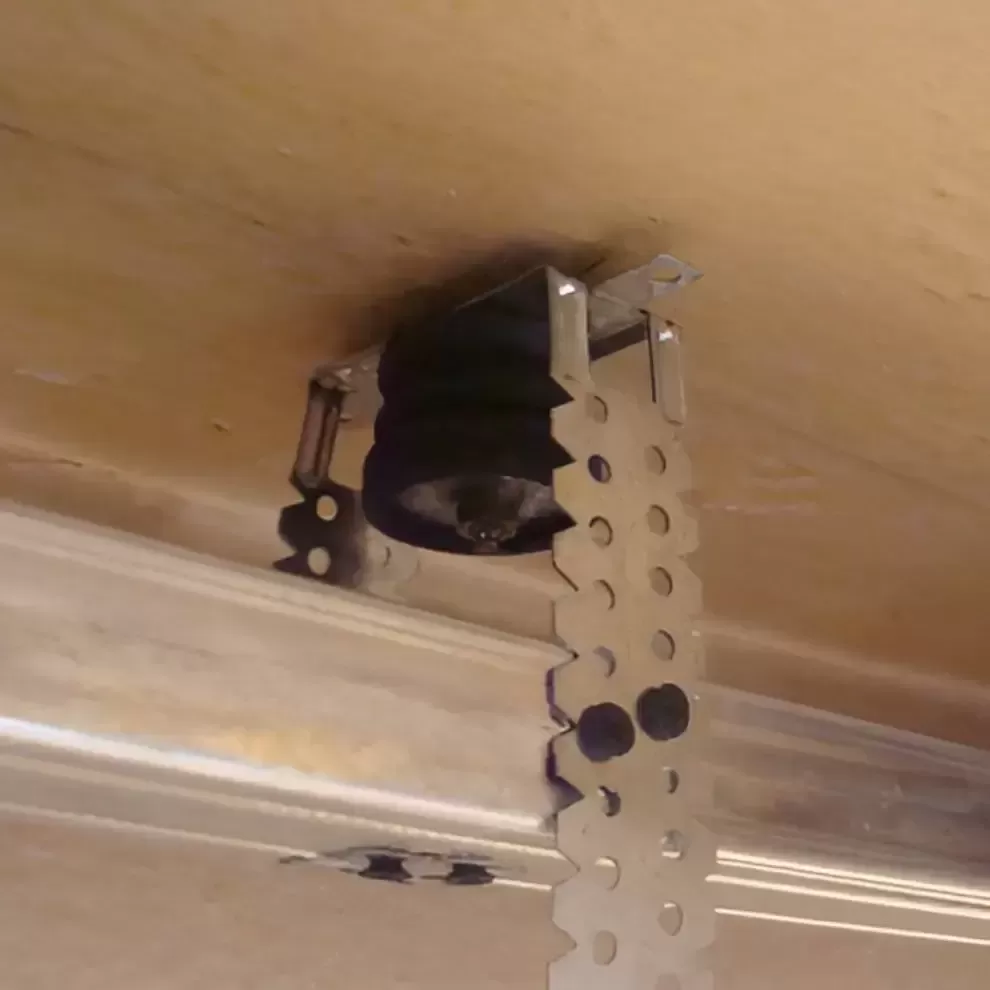

When installing a false ceiling from gypsum board using Pi mini antivibration hanger, the following procedure is followed:


• Mark the hanging spots of the false ceiling.
• Drill up to Ø8 holes on the ceiling.
• Prepare Pi mini without forming it into a Π shape
• Screw the bolts or rods.
• Fold the two side flaps so that a Π shape is created.
• Screw and hang the metal profile onto both sides of the Pi mini.
